Bering Optics Super Hogster LRF 35mm Thermal Scope

Super Hogster LRF 3.5-14.0x35mm 384x288/12um Thermal Scope Built in WiFi



 AUTHORIZED DEALER



The SUPER HOGSTER LRF™ 3.5-14.0x35mm thermal weapon sight offers an advanced LWIR 12uμ spectral VOx 384x288 core with NETD ≤35mk, a durable Aluminum-Magnesium Alloy body, and is available with two dependable Quick-Detach mounts from LaRue Tactical® (BE43545L) or Bering Optics® (BE43545T).

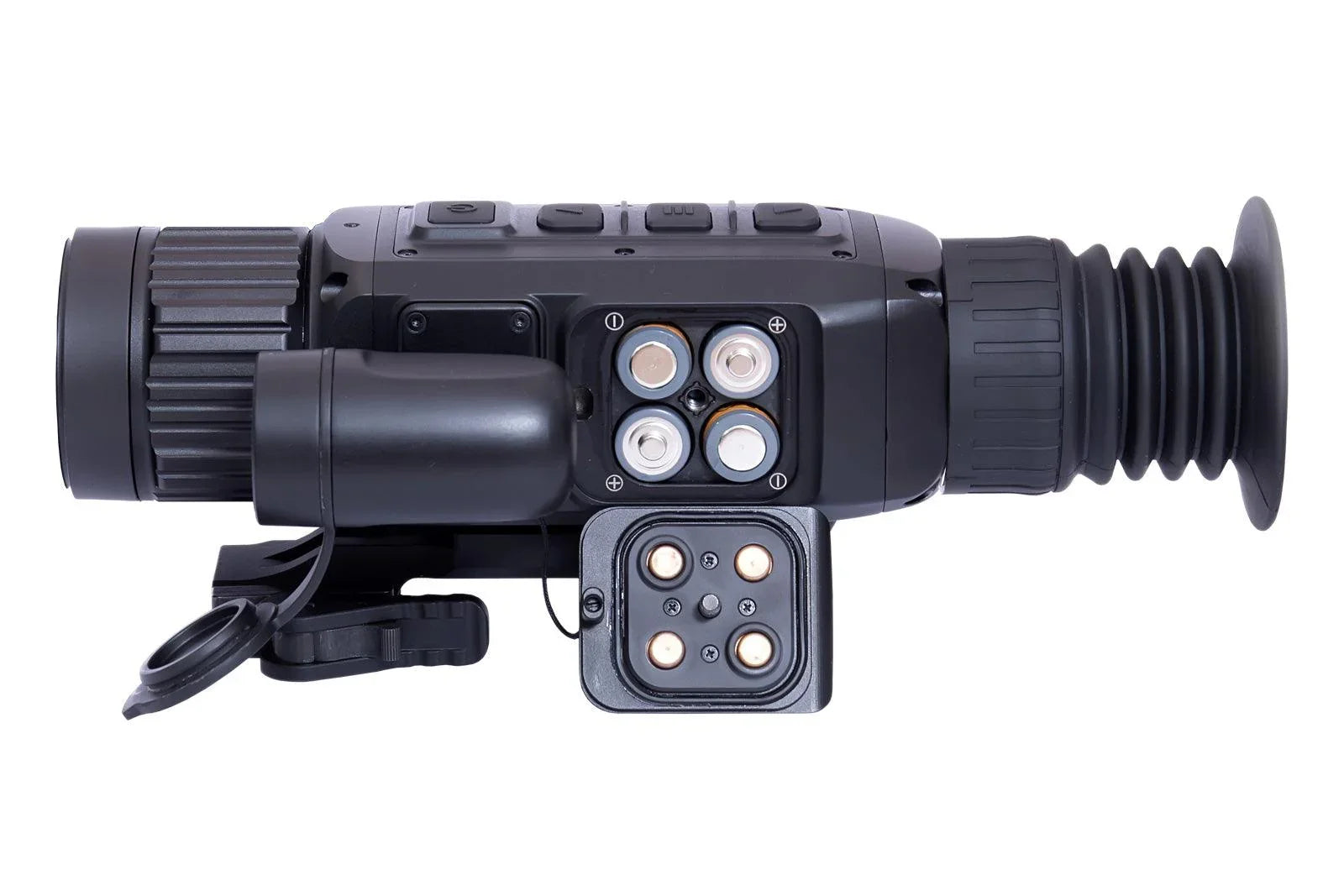

The SUPER HOGSTER LRF™ 3.5–14.0x35mm offers a range of power sources: rechargeable 1.5V Li-ion, 1.2V NiCad, 1.2V NiMH, and 1.5V AA Alkaline batteries. For added convenience, the scope can be powered with an external 5VDC supply via a shock- and dust-proof magnetic port, connected with a 1-foot quick-release cable provided in the package. This flexibility offers the user greater assurance of readiness for their next excursion.

The newest BDC Reticle #9 with its manually adjustable hashtags feature and the accompanying Reticle Customization App, offers users convenient mobile device access.

The powerful 32GB onboard memory enables up to 5 hours of video/photo capture, plus sound recording capabilities, guaranteeing a high-quality experience. The lightweight, power-efficient precision laser rangefinder operates in a convenient Constant Scan Mode and accurately measures up to 1000 yards with 1 yard precision.

FEATURES

• Superior predator control at medium- and long-range distances up to 1000 yards

• Powered with rechargeable 1.5V Li-ion, 1.2V NiCad, 1.2V NiMH or 1.5V AA Alkaline batteries

• Laser Rangefinder to measure distances up to 1000 yards with exceptional accuracy ±1 yard

• 9 reticle patterns, including 4 BDC-type reticles

• Customized Reticle #9 with manually adjustable hashtags

• Reticle Customization App

• Excellent performer in high humidity

• Able to withstand strong recoil up to 6000 J.

• Picture-in-Picture function- 2X multiplied image on the top of the display

• Automatic shutter based thermal 12uμ VOx 384x488 core with Auto- or Manual calibration

• Switchable image polarity: White Hot / Black Hot / Red Hot / Rainbow / Highlight

• 4 color options for each reticle pattern

• Precise W/E adjustment increments is 0.67” at 3.5x (native magnification)

• Manual control of image sharpness, screen brightness, and image contrast

• Manual control image background balance of white (Cool or Warm) background

• Ability to save 4 profiles of zeroing calibration data

• A precise lens-focusing mechanism

• 5V DC external power supply option via the Magnetic port

• Blind Pixel repair tool option

• Standby mode

• Digital Compass

• Digital zoom rapid movement mode

• Digital zoom with 0.5x magnification movement mode

• Inclinometer

• Battery status indicator

• Nitrogen purged

• Video out

• 32Gb internal memory

• Built-in internal recording function in .mp4 (video) and .jpeg (image) formats

• Built-in microphone

• Timer

• Freeze Function for one shot zero

• Build-in magnetic port for video output and 5V DC external power connection

• Wi-Fi capable- allows media recording to the mobile device (iOS or Android App is required)

• Quick-Detach (QD) Tactical lockable Picatinny mount (BE43545T) with guaranteed zero retention

• LaRue Tactical® Quick-Detach (QD) lockable mount (BE43545L) with guaranteed zero retention

• 4-year manufacturer’s transferable warranty on parts and labor

APPS app for Apple or for Android.

The HOGINATOR application is designed to configure the ballistic reticle #9 of the Super Yoter LRF at the preselected ranges. This setup ensures that the user has the most accurate reticle based on the rifle and ammo combination to quickly engage the target.

Specifications

Product Modification

SUPER HOGSTER LRF

Product SKU#

BE43545T / BE43545L

Optical Magnification, x

3.5x

Digital Multiplication, X

2X, 3X, 4X

Objective lens system

35mmF/1.0

Angular FOV at 3.0x (horizontal x vertical), degree

7.5° x 6.0°

Eye relief, mm

46

Focus range, yard

1 to infinity

Diopter Adjustment, D

-5: +5

Reticle W/E increment value per pxl at a distance of 100m (110yds)

0.67” at 3.5x magnification

Core resolution, pxl

384x288

Pixel pitch, μm

12

Image refresh rate, Hz

50

Thermal Sensitivity (NETD), mK

≤ 35

Display type and resolution, pxl

OLED 1024x768

Start-up time, typical, sec.

20

Object type and size, approx., ft² / m²

Hog 7.5 / 0.7

Coyote 5.5 / 0.5

Detection, approx., yds / m

990 /900

880 /800

Recognition, approx., yds / m

660 /600

550 /500

Dimensions with QR mount, approx., in / mm

8.7 x 4.05 x 3.31 / 220 x 103 x 84

Weight w/out batteries, approx., oz/g

26 / 745

Power supply

1.5V rechargeable AA (four) or 1.2V rechargeable AA (four) or 1.5V non-rechargeable AA (four) or 5V DC Magnet port

Estimated battery life without LRF (at 72°F) *, hour

1.5V Li-ion 3000mAh, 6.0

1.2V NiMH 2800mAh, 5.5

1.2V NiCad 2300mAh, 1.5

1.5V AA Alkaline 3.0

Operating temperature, typical, °F/°С

-14° to +122° / -25° to +50°

Water intrusion

IP67

Humidity, %

up to 98%

NOTE: *Battery life may vary depending on battery capacity, ambient temperature, and the number of product features activated (Wi-Fi, video recording, brightness settings).

KIT INCLUDES

• SUPER HOGSTER LRF™ 3.5-44.0x35mm, 12uμ VOx 384x288 Thermal Weapon Sight

• Larue Tactical Quick-Detach (QD) Picatinny mount

• Front lens protective cap

• Rubber eye guard

• 4pcs of 1.5V AA batteries

• Magnetic cable

• 2pcs Self-Heated target

• Carrying Case with a shoulder strap

• Lens Cleaning Cloth

• Instruction Manual

OPTIONAL ACCESSORIES

• 4pcs rechargeable 1.5V Li-ion 3000mAh batteries

• Charger for 1.5V Li-ion rechargeable batteries

EXPORT RESTRICTION

Please review our ITAR / EAR COMPLIANCE - The International Traffic in Arms Regulations (ITAR) & Export Administration Regulations (EAR)
